MTFR SERIES
Modular Linear Reciprocating and Fretting Tribometers

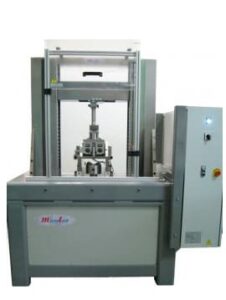

Microtest MTFR/XXX/Ni is a high frequency reciprocating tribometer very versatile and suitable for studying the fretting wear characteristics of a wide range of materials and components with different sample geometries.
Different sensor systems and instrumentation can also be added to fulfill individual testing requirements.
For this proposal, a linear displacement (reciprocating) drive system along with a high temperature furnace are proposed according to the technical specifications of this tender.
The equipment can be adapted easily to different contact conditions, including adaption to different sample sizes and shapes.
The basic module allows the use of the equipment for linear reciprocating tests: evaluation of lubricants, materials, components, coatings and surface treatments.
The combination with different modules expands its capabilities: high temperature tests, wear fretting tests under normal load, pin-on-disk module, lubrication tests, tribo-corrosion, etc.
Typical values of nominal frictional forces are: 50N, 100N, 200N, 500N, 1000N, 1500N and 2000N.
General features
- Computer Controlled.
- Optional vertical electromechanical system for normal load and displacement.
- High precision motion control electronics.
- High load capacity measurement and control: maximum load from 50N (<0.01N resolution) to 1000N (0.05N resolution) (or 2000N in special cases).
- Exchangeable high resolution force transducers up to 1000N. Normal force and frictional
forces. - Optional in situ Wear Measurement: high resolution capacitive and inductive probes.
- Optional lateral displacement carrier unit, computer controlled.
- Computerized Measurement Control.
- Multi-Channel High Speed Acquisition System.
- Programmable alarms and limits.
Download Catalog MTFR Series Modular Linear Reciprocating and Fretting Tribometers.
TriboTester testing software for tribological testing.
