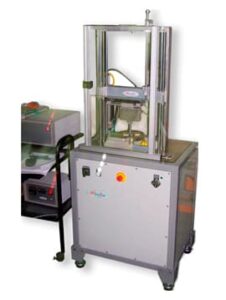

MTEM4 SERIES
Modular Universal Tribometer
The MICROTEST Universal Tribometer is a modular multi-test equipment fully automatic and computer controlled. It is supplied with its own floor standing bench.
The structure is made in steel and the plate bases are in cast and steel to minimize the effect of vibration during tests.
The control system includes the personal computer and the installed software.
It includes an optical encoder for a continuous measuring of the crosshead position that allows also the control of the test speed.
The system is delivered fully and precisely calibrated with traceable ENAC certificates for the involved quantities, for in situ measurement of friction.
This basic platform of this Universal Tribometer consists of a vertical load frame with a double screw electromechanical assembly driven by a servo DC electric motor. This system is used to apply the controlled vertical load.
The Four axis motion control system allows the full automation of test sequences by using our Tribotester MT software. Tests are defined by a sequence of steps, each step containing parameters as set-point, number of cycles, speed, data recording rates and alarm level information. The vertical load is applied by the vertical crosshead (Z axis electromechanical system) and the force is controlled and measured by the vertical load cell in the load carrier.
Depending on the model, normal forces are from 60N to up to 1000N.
GENERAL FEATURES OF MTEM4/60-1000N
- Computer Controlled vertical displacement and Applied Load.
- High precision four axis motion control electronics.
- High load capacity measurement and control: maximum load from 60N (<0.01N resolution) to 1000N (0.05N resolution).
- Exchangeable high resolution force transducers up to 1000N. Normal force and frictional forces.
- In situ Wear Measurement: high resolution capacitive and inductive probes.
- Lateral displacement carrier unit, computer controlled.
- Computerized Measurement Control.
- Multi-Channel High Speed Acquisition System.
- Programmable alarms and limits.
Download Catalog MTEM4 Series Modular Universal Tribometers.
TriboTester testing software for tribological testing.
