F-ECH SERIES

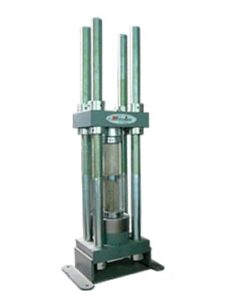

MICROTEST F-ECH hydraulic compression testing machines
MICROTEST F-ECH hydraulic compression testing machines are designed to perform creep compression test on concrete, rock, soil or new material samples, The duration of this type of tests ranges from days to several years.
These machines are designed not only to fulfill the requirements of standard tests but also the specifications related with research in mechanical properties of new materials.
They are built in capacities ranging from 100 kN to 5000 kN or more, under demand.
In F-ECH systems, the load is applied by means of a hydraulic cylinder in a two or four columns high stiffness testing frame. The system includes an integrated load maintaining system by means of a pressure N2 accumulator system.
In F-ECH systems, the load is applied via a hydraulic cylinder within a two or four-column high stiffness testing frame. The system incorporates an integrated load maintenance system through a pressure N2 accumulator.
This hydro-pneumatic device allows a high stability of the applied force during long periods of time.
In F-ECH system, the load is applied by means of a hydraulic cylinder in two, three or four columns, high stiffness testing frame. The system is capable of maintaining the applied load for long periods of time with a very high stability. The aparatus is designed to determine the Creep of Mould Concrete Cylinder subjected to sustained longitudinal compressive load.
Download Catalog F-ECH series Hydraulic Compression Testing Machines for Creep Tests.
