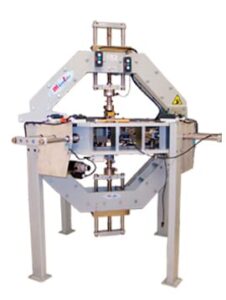

MAEFH SERIES
Servohydraulic multiaxial testing machines
MICROTEST MAEFH Series servo-controlled multiaxial (biaxial and triaxial) testing machines are suitable for testing different type of materials: steel, aluminum alloys, fiber reinforced composites such as plastics, glass fiber reinforced epoxy, graphite fiber reinforced epoxy, etc.
Loading capacities: from 5 kN to 500 kN along each axis (synchronized tensile/compressive loading along perpendicular directions).
Specimen Loading Control: Options for both displacement and load control loading independently along each axis.
Grips for Tension/Compression are provided according to sample size and user requirements.
Dynamic range and loading rate are defined according to customers requirement: selection of Hydraulic Power Unit, Servovalves, etc.
MICROTEST MAEFH Series multiaxial testing machines are servo controlled hydraulic testing systems with complete set of elements for individual axial tests or combined multi-axial tests.
This system features a High Stiffness multi axis Testing Frame with 4 servo-hydraulic actuators in the case of biaxial testing machines and 6 fatigue rated servo-hydraulic actuators for tri-axial systems.
The actuators are working in pairs in two orthogonal axis. The actuators can be individually controlled and programmed for independent or synchronized control load, position or strain.
The grips are according to Material Testing Standards such as ISO, EN, ASTM. The grips are capable of transferring tensile as well as compressive load e.g. dynamic testing with zero mean wherein the specimen will undergo tensile and compressive loading both in one
loading cycle.
Programmable Frequency, amplitude, phase difference and waveform of loading along each axis with standard waveforms – Sine, Triangular, Square and Ramp Signal.
Download Catalog MAEFH Series Servohydraulic Multiaxial Testing Machines.
