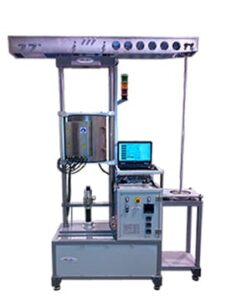

EM1/10…50E/H-HTBP SERIES
Single lever arm creep testing machines with dead weights
The MICROTEST EM1/10…50E/H-HTBP is a modified version of our EM1/50E/H-HTRP stand-alone floor machine, designed for high temperature creep testing applications, that includes a single lever for applying and maintaining the load.
This lever arm machine is designed specifically for long-term stress-rupture test applications that involve maintaining constant loads for extended periods of time.
Through the mechanical advantage of the lever arm loading system, constant loads may be maintained with a high degree of accuracy using dead weights for long durations, without the continuous operation and dependency of a mechanically powered drive and can be configured for either room or elevated temperature operation.
The load frame capacity for this machine can be 10 kN to 50 kN (or even higher upon request).
Its compact design consumes a minimal amount of laboratory space while performing tension tests on a variety of materials. It is also possible to adapt this type of machine for other type of tests: compression or shear tests, for example. Rigid-column construction with single-screw drive provides precise alignment during testing procedure. Columns are treated and hard-chrome plated for extended life and durability.
The features of this system include an advanced version of the SCM3000 system for machine control, measurement of quantities and data recording during long term tests.
Download Catalog, SERIE EM1/10…50E/H-HTBP Series Single Lever Arm Creep Testing Machines with Dead Weights.
SCM3000 testing software for static materials testing.
